Trim Router Base for Hercules

Router is not included. Shown for demonstration only. Please choose your base or table kit option correctly.

Compatible with Hercules Corded/Cordless

Bad news: trim routers are notorious for being unstable and having poor dust collection.

Good news: we just solved it for you AND made a way to create a quick router table.

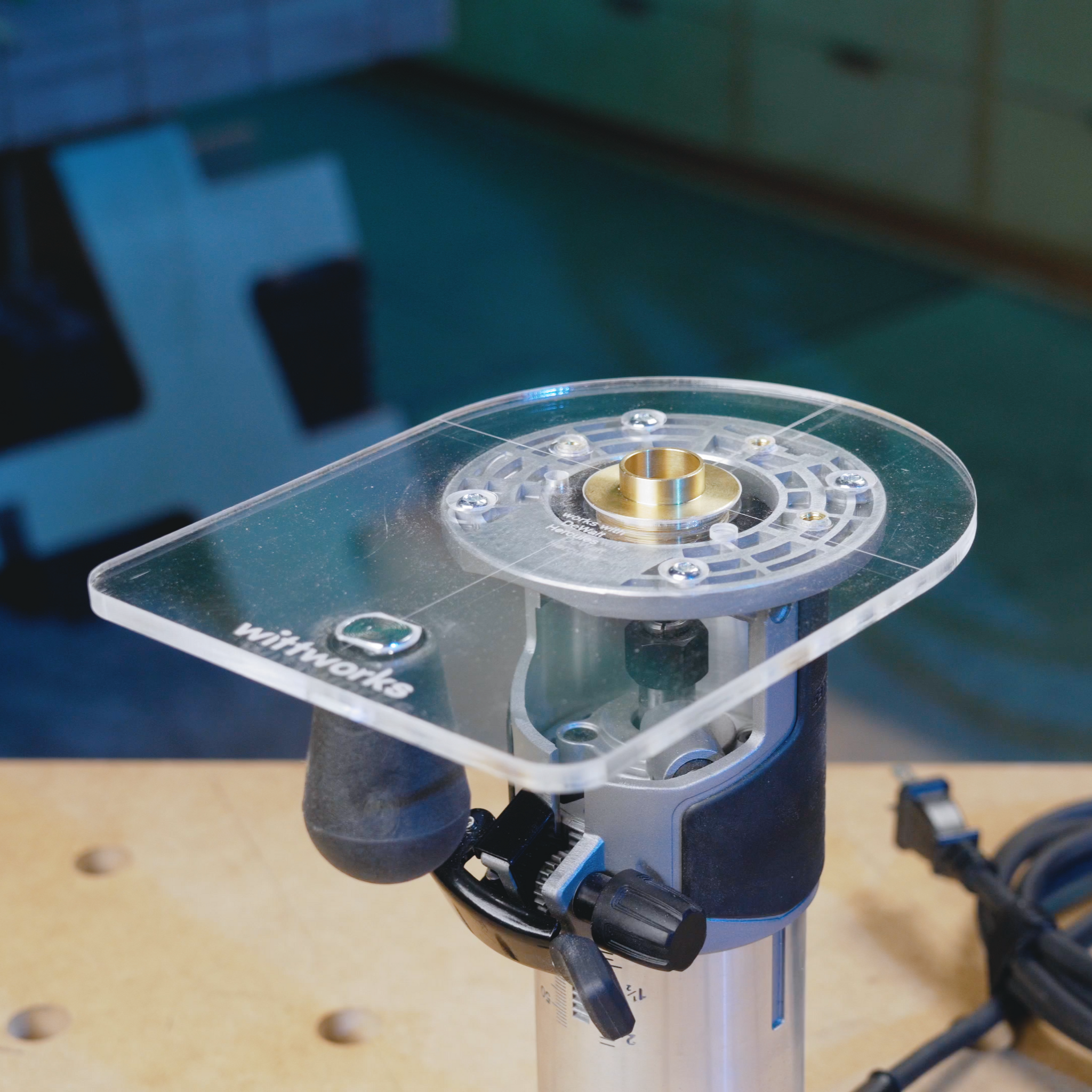

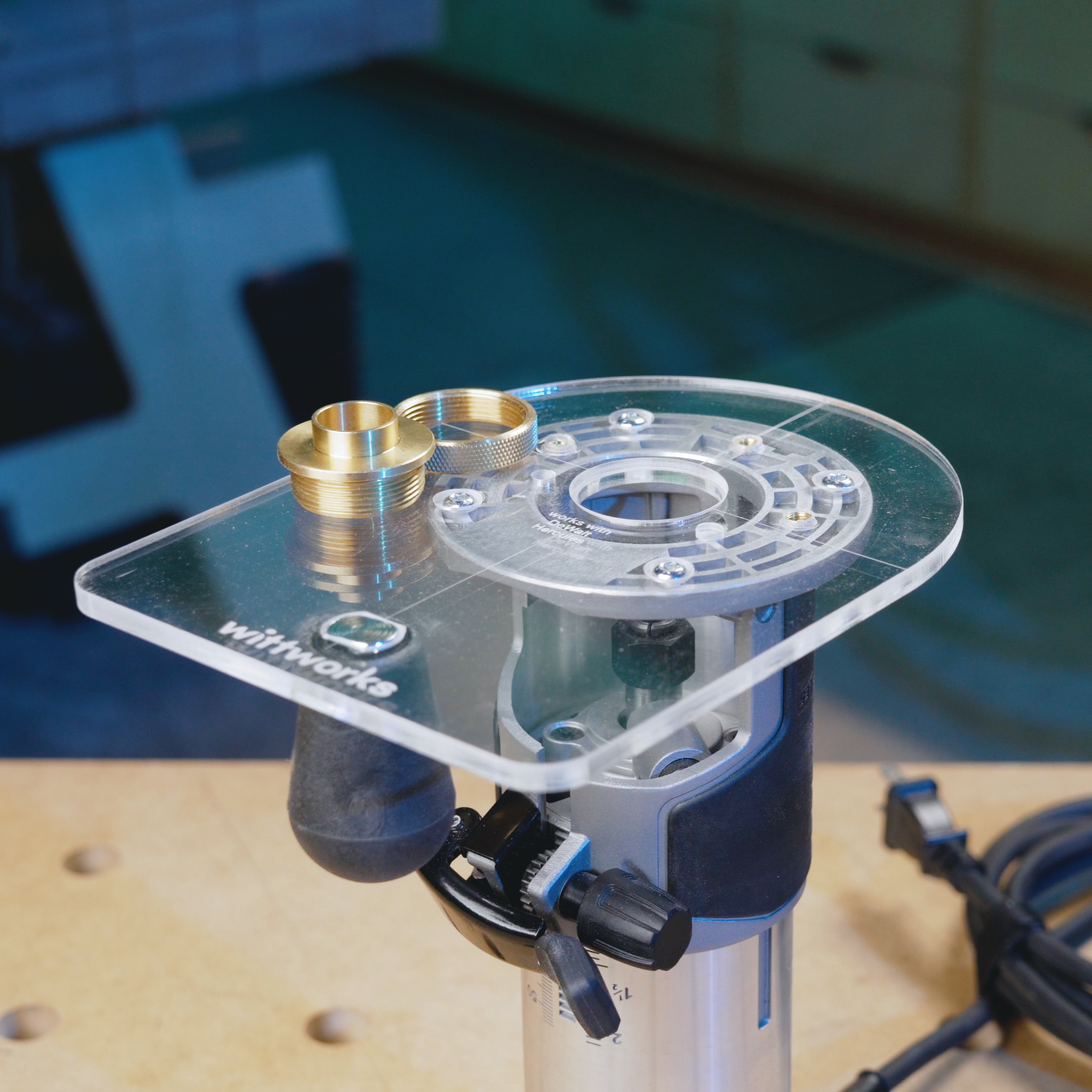

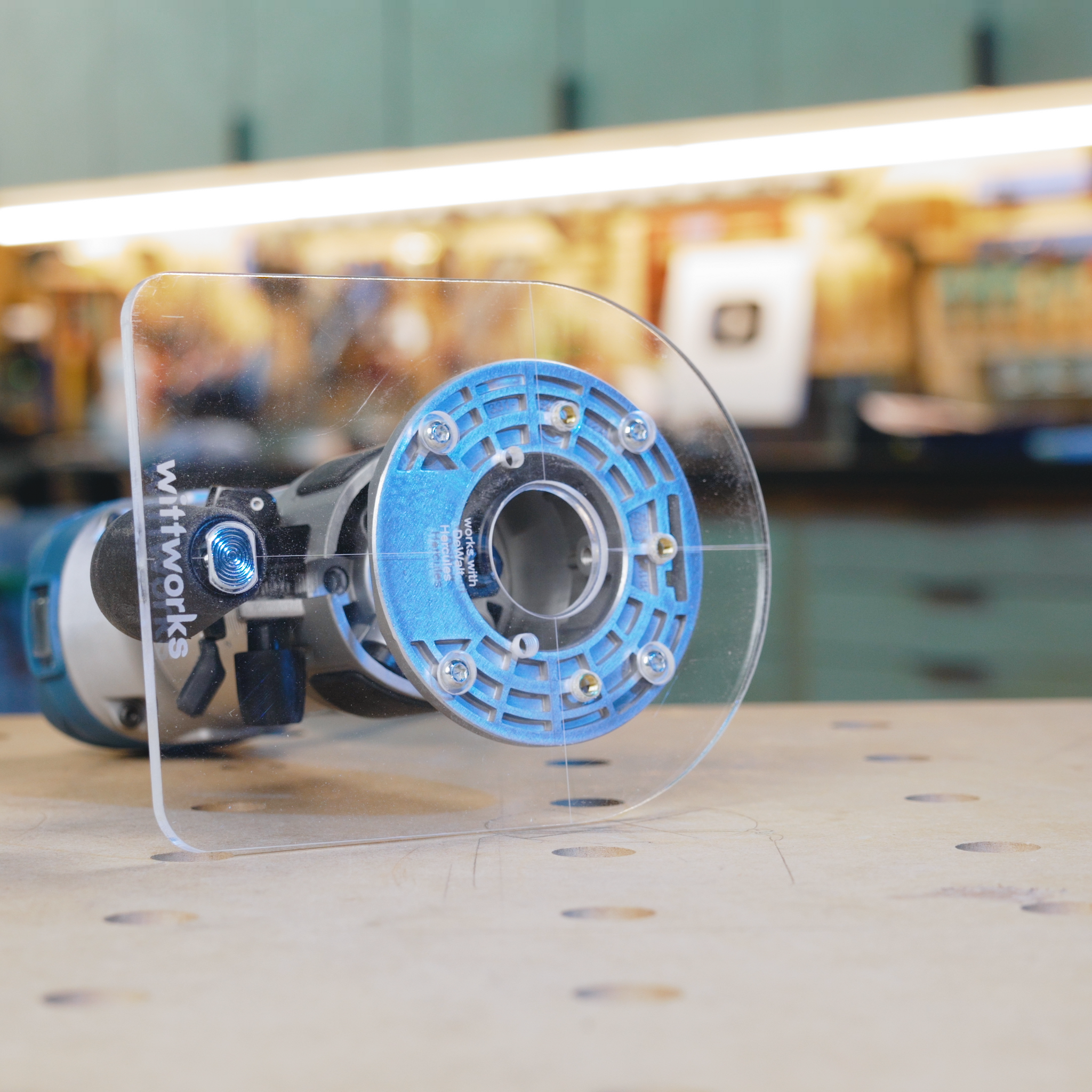

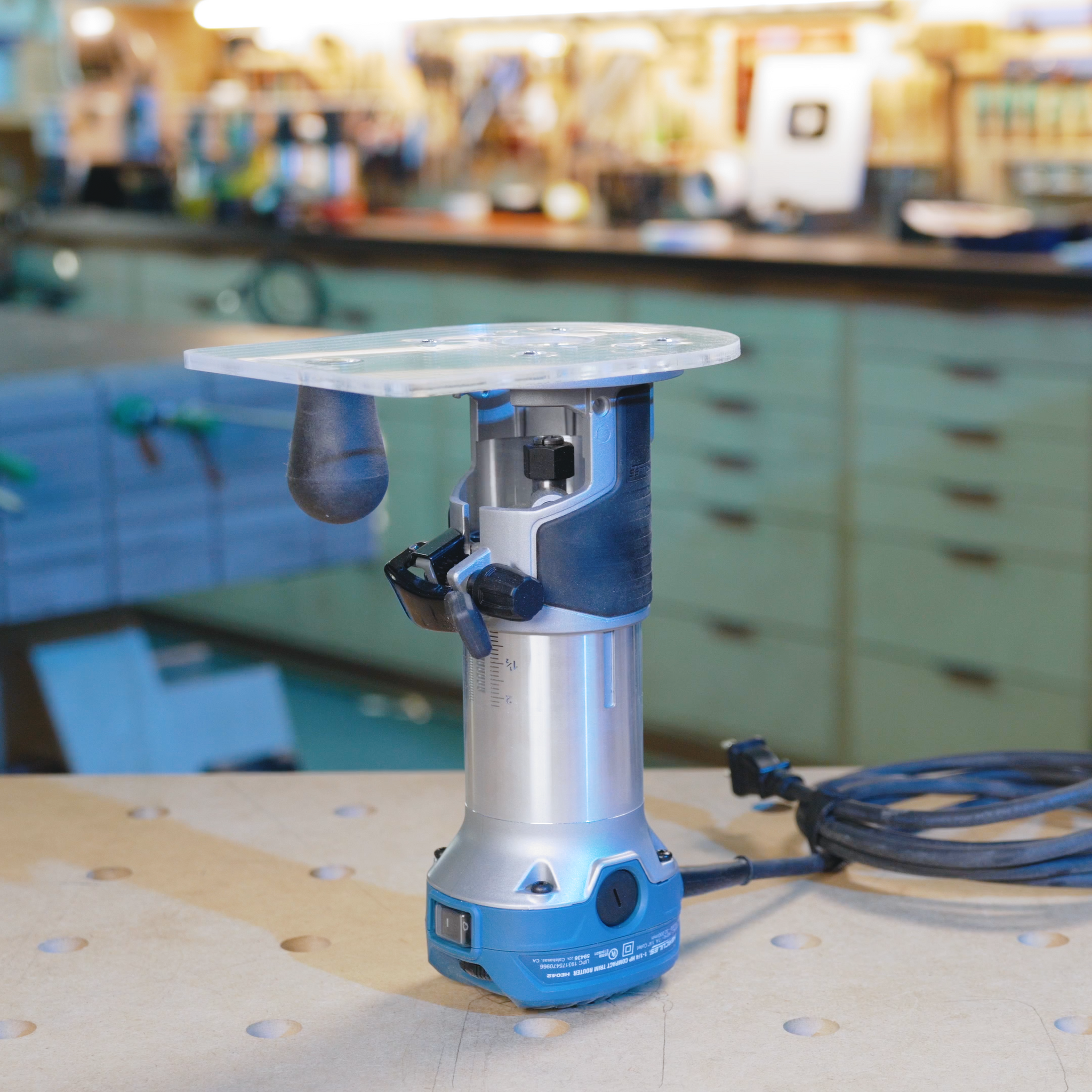

The wittworks Trim Router Base 1000 Pro featuring trimVac makes your trim router more stable, unlocks amazing dust collection on edge profiles and flush trimming, is compatible with standard brass bushings, and can be quickly dropped into a router table top that we show you how to build (if you buy the kit). When you're done with the table, just hang it on the wall out of the way and take your trim router with you.

One more thing, we hate universal hole patterns. No one likes routing over swiss cheese. So we made dedicated plates for each unique hole pattern on the market. You're welcome.

We also offer a blank acrylic base so you can drill your own holes for a specific model.

Base + trimVac ($99.99) includes:

1. brand-specific oversized router base
2. soft touch plate knob with 1" 1/4-20 t-bolt

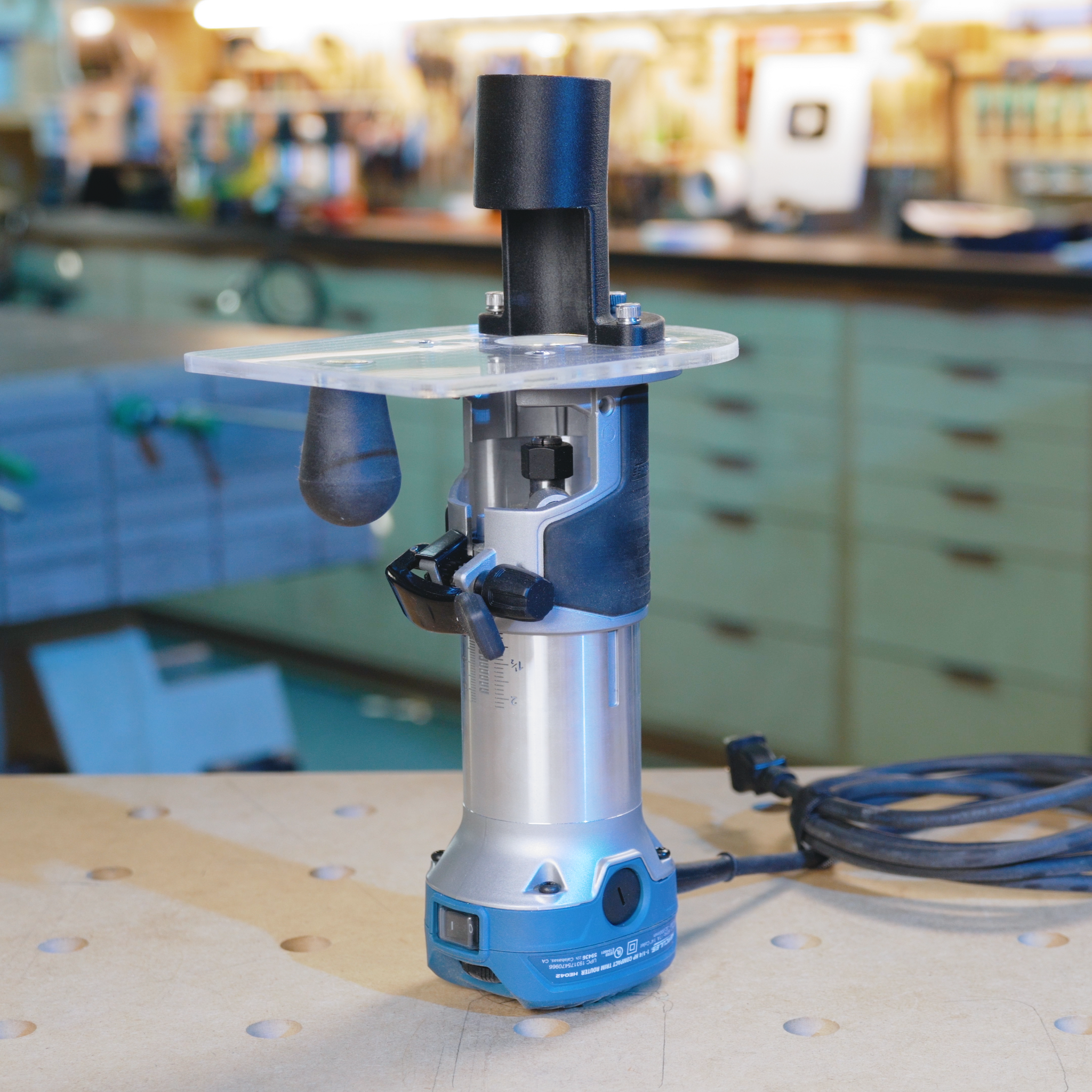

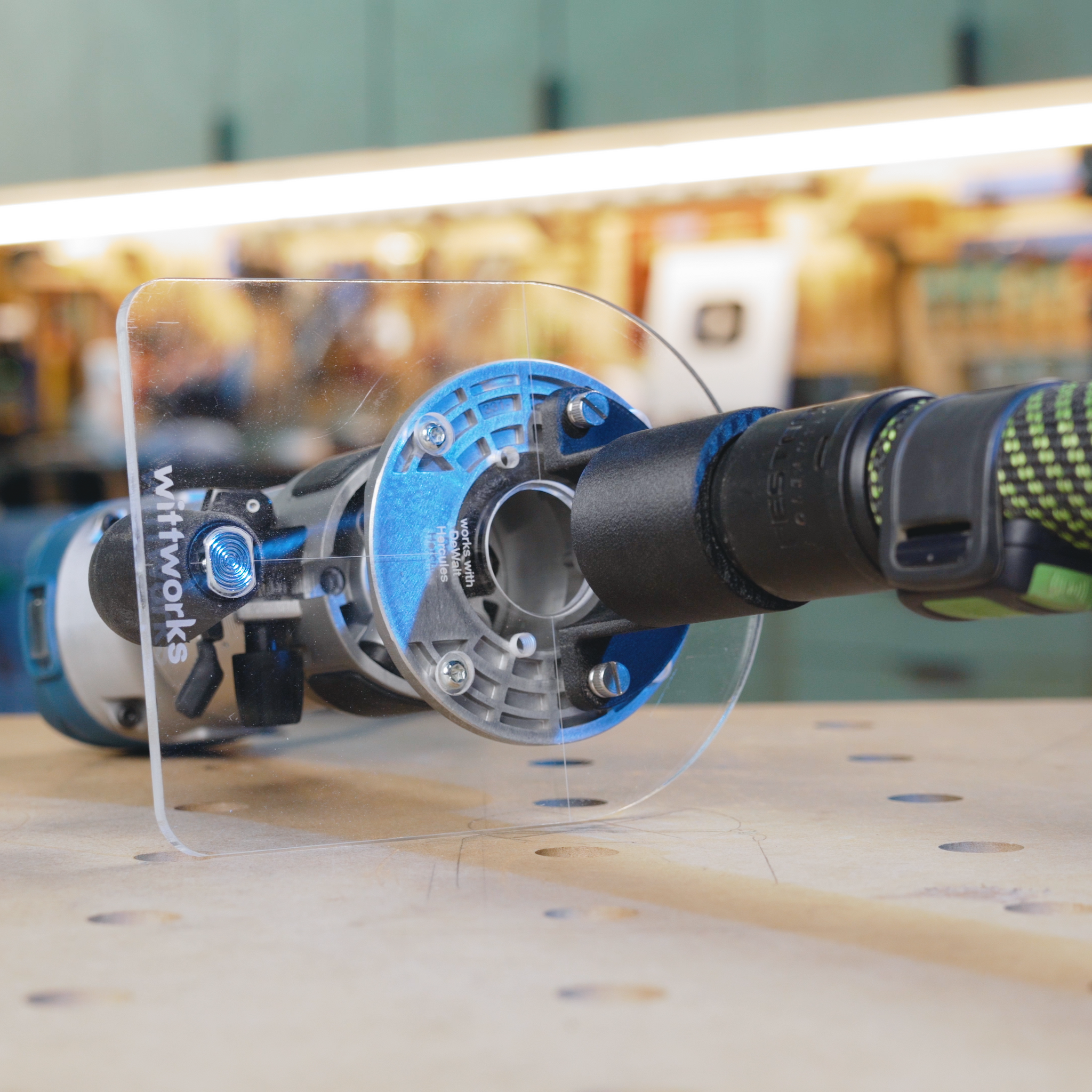

3. trimVac dust chute attachment with integrated thumbscrews*
4. this base + trimVac option DOES NOT INCLUDE THE FULL TABLE BUILD KIT AS SHOWN IN SUPPLEMENTAL PICTURES. IF YOU WANT TO YOU BUILD A ROUTER TABLE, SELECT THE BASE + TRIMVAC + ROUTER TABLE KIT.

Router Table Kit ($169.99) includes:

1. brand-specific oversized router base
2. soft touch plate knob with 1" 1/4-20 t-bolt
3. trimVac dust chute attachment with integrated thumbscrews*

4. JimmyPin start pin
5. two-part acrylic template set
6. fencePort that accepts dust extractor hoses from Festool, Centec, & Rockler
7. six high-quality 1/4-20 knobs from Bow Products
8. two 90 degree fence brackets
9. all t-bolts and screws needed
10. In-depth digital plans
11. exclusive instructional build video with chapters

Router Table Kit DOES NOT include:

1. router
2. plywood/mdf material
3. t-track & t-track screws
4. router bits
5. clamps, dogs, and hold down material

You will need to supply your own material, t track, and router bits. A complete list of tools and suggested materials/accessories is included in the digital plans.

*All 3D printed parts are printed with ABS-glass fiber filament. We chose this higher-end filament for its superior performance and temperature tolerance.

Both hose ports are sized to fit the Festool D27 hose, Cen-Tec Quick Click Hose (94181, 94192, 94126, 94203), and Rockler hoses with the FlexiPort end with 1" ID and 1.5" OD. Does NOT fit typical shop vac hoses.
