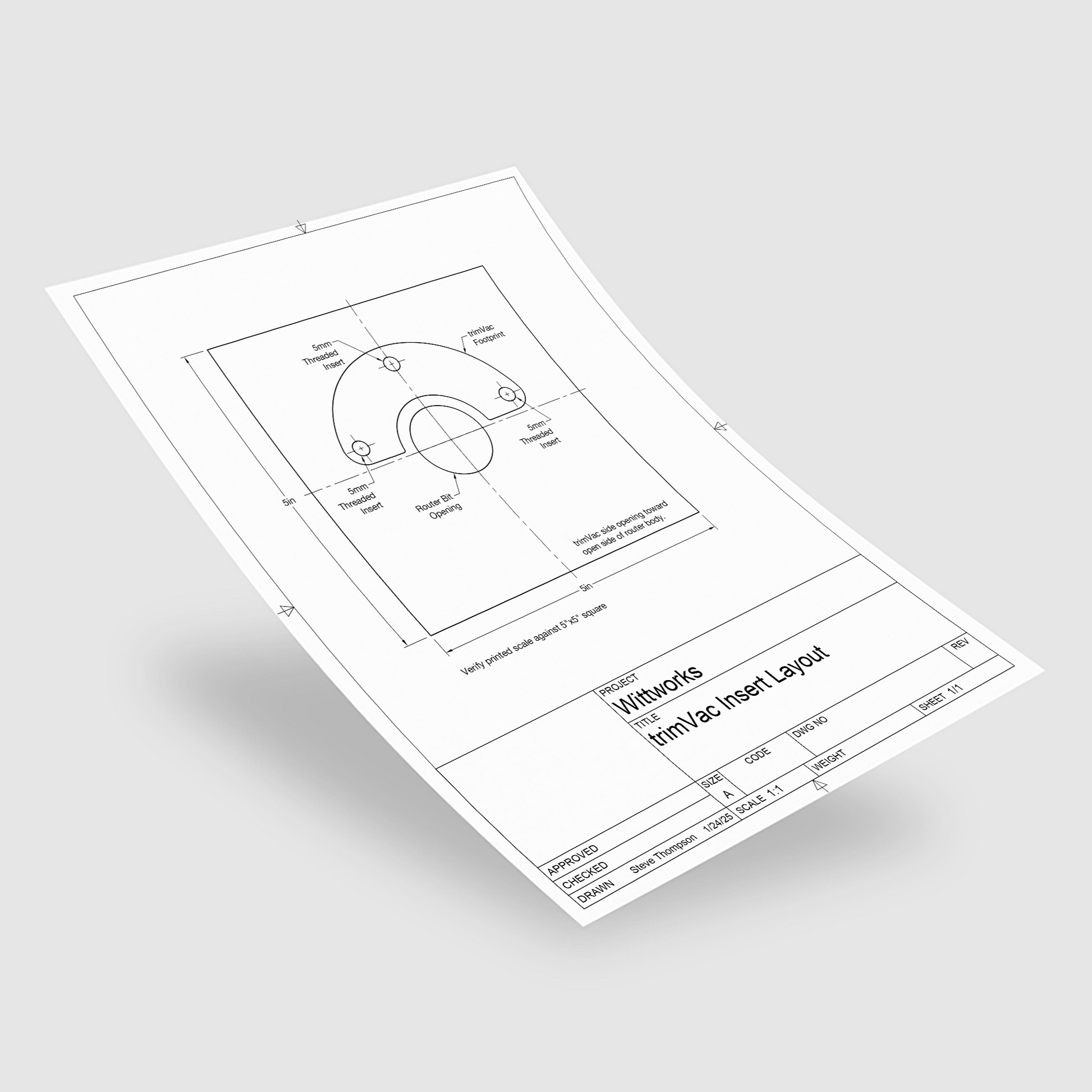

wittworks trimVac Insert Layout Template

This template allows customers with our trimVac dust chute to custom-mount it on their router plates.

Print the PDF template out at 100%. Verify it is printed at the correct scale. Place on top of the plate you want to mount the trimVac to. Use an awl or center punch to locate the holes. You can use threaded inserts or tap your own threads. We use 5mm threaded inserts on our acrylic plates.

This is a digital file. No physical template will be mailed.
